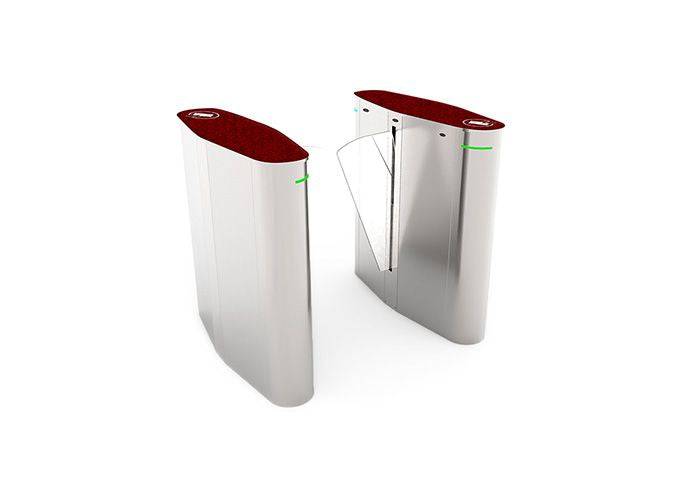

ტურნიკეტი - Atlas B 100FL XL – Angular Leaf Turnstile for Disabled Person

ტურნიკეტი   Atlas B 100FL XL – Angular Leaf Turnstile for Disabled Person

მახასიათებლები:

·        Case: AISI 304 quality stainless steel and decorative stainless options can be made.
Wings: 10 mm tempered & ground glass. Option; Plexi
Top Table: 10mm tempered & opaque glass with visual content provides unlimited visual possibility, glass, wood, granite or any visual use of any visual we provide the opportunity to obtain a stylish and realistic image.
Mechanism: Adjustable torque control does not harm the person in physical jams.
Sensor: Detection sensors Each turnstile has 6 mutual photo-electric sensors.
Led Indicators: Optional and as option; It is applied under the upper table, nose and wings.
Operation: Two-way controlled or uncontrolled input output
Operating Voltage: 110 – 220 VAC, 60 Hz.
Working temperature: -10 ° C / + 50 ° C
Pass Speed: 40 persons / minute
Emergency: Fire, panic and so on. As with all panels it is simply compatible with the connection. In case of contact or cable connection from this type of devices, the turnstile automatically switches to free pass and the wings are opened and the passageway is opened.
Transition Interval: adjustable from 50cm to 63cm.
Weight: 80 kg (Single Wing)
Security Level: Deterrent
Uses: Suitable for indoor use
