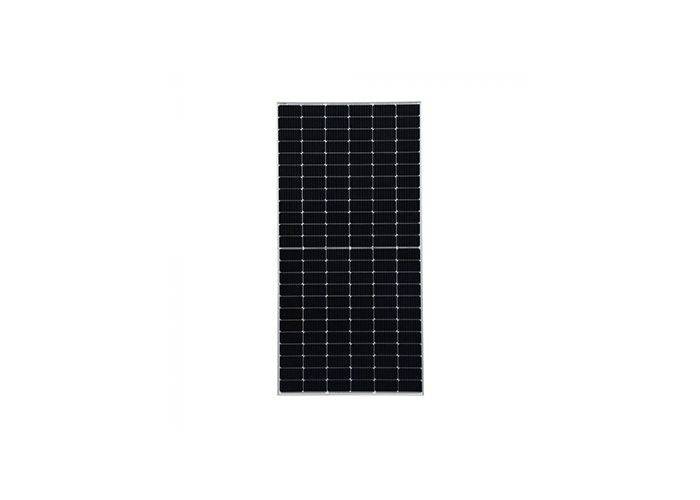

მთავარი | | მზის პანელი: 545W Mono Solar Panel 2279x1134x35mm
  • მზის პანელი: 545W Mono Solar Panel 2279x1134x35mm, W 545- ITGS
1 1

მზის პანელი: 545W Mono Solar Panel 2279x1134x35mm

მზის პანელი: 545W Mono Solar Panel 2279x1134x35mm

630.00 GEL
630.00 GEL
ფასდაკლება მარაგი ამოიწურა
შედის გადასახადი.

P0713S

Product benefits

  • Introducing High efficiency Solar Panels - one for a Lifetime
  • Advanced glass and cell surface textured design
  • 166x83 Mono cell type with maximum system voltage of 1500V
  • 144(12x12) cells with 4mm² output cable 35cm
  • Max Series use Rating 20A and Power Tolerance 0~+3 W
  • Max Wind Load/Snow Load 2400Pa/5400Pa
  • IP68 ingress protection perfect for outdoor use
Specifications

General Information

Electrical Data
Current
  • Maximum Power Current(Imp): 13;
  • Short Circuit Current(Isc): 13.92±3%;
Voltage
  • Maximum Power Voltage(Vmp): 41.93;
  • Open Circuit Voltage(Voc): 49.90±3%;
Wattage
545W

Body Details

Capabilities
IP Rating
Junction box: IP67/IP68 3diodes
Working conditions
-40°C to +85°C

Dimensions
Size
2279x1134x35mm

Product Data
Product code
VT-545
Item Weight
30,04
Item Volume
0,108532
EAN Code
3800157682220

Certificates & Standards
Certification
CE, EMC, ROHS

Additional
Brand
V-TAC
Warranty
12 years product warranty / 25 years linear warranty for productivity
იხილეთ დეტალები სრულად
